Project 01 · 2013 · International Project
From Coimbatore
to Port Elizabeth
Fume Extraction System
Coega Steels (Pty) Ltd | Agni Steels SA
Fabrication in Coimbatore, India. Complete system erection in Port Elizabeth, South Africa.
Project scope
Fume Extraction System
Client: Coega Steels (Pty) Ltd | Agni Steels SA. Fabrication was completed in Coimbatore, India, with complete system erection in Port Elizabeth, South Africa.
Project details
- Client
- Coega Steels (Pty) Ltd | Agni Steels SA
- Project
- Fume Extraction System
- Year
- 2013
- Fabrication
- Coimbatore, India
- Erection
- Port Elizabeth, South Africa
- Fabrication tonnage
- 80 tons
- Complete erection tonnage
- 110 tons
01
Fabrication & transport
80 tons fabricated in Coimbatore
Fabricated fume-extraction sections prepared for transport.

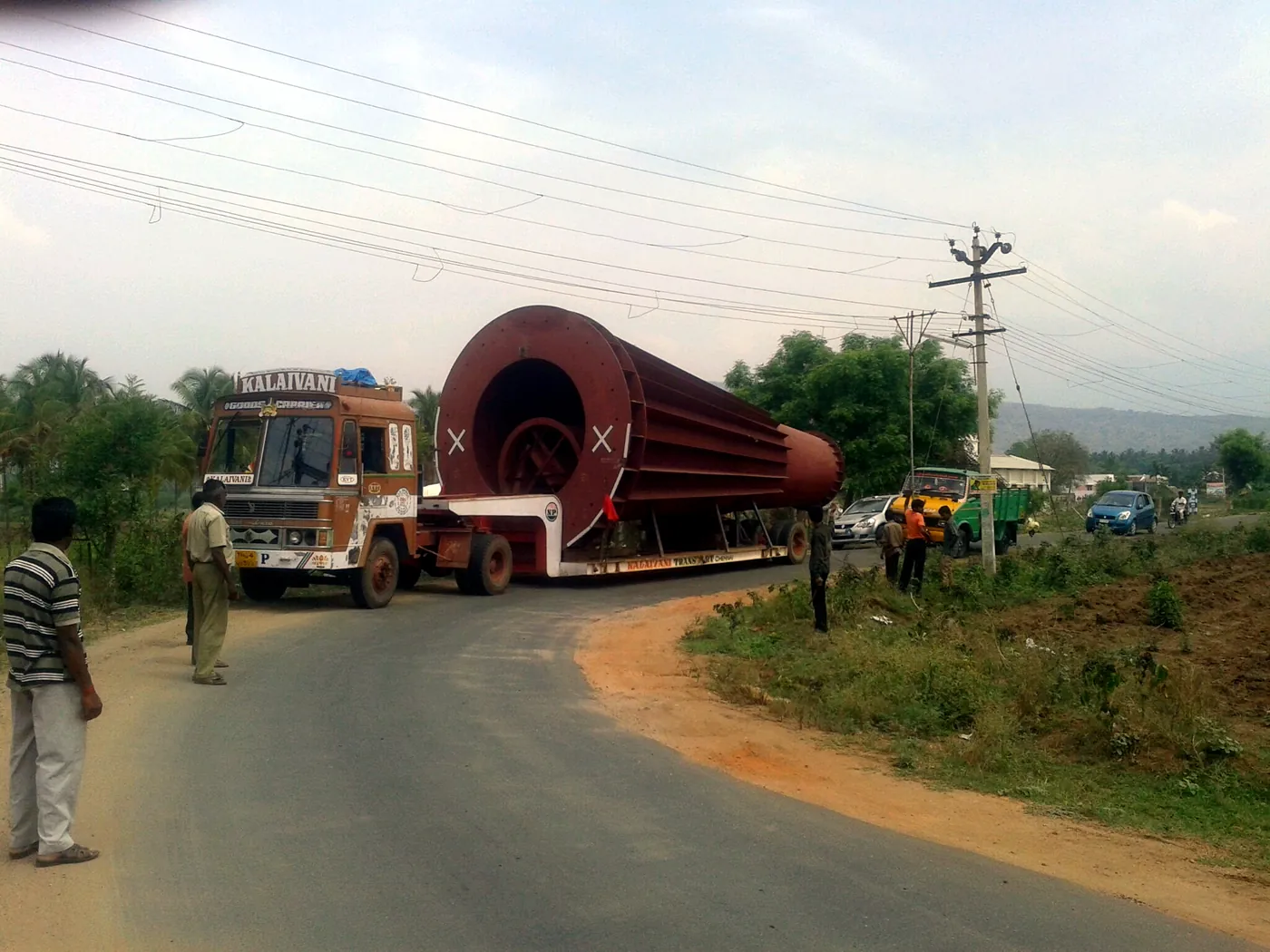

Oversized fabricated fume-extraction section being transported from Coimbatore.
Large fabricated duct section being handled for project transport.

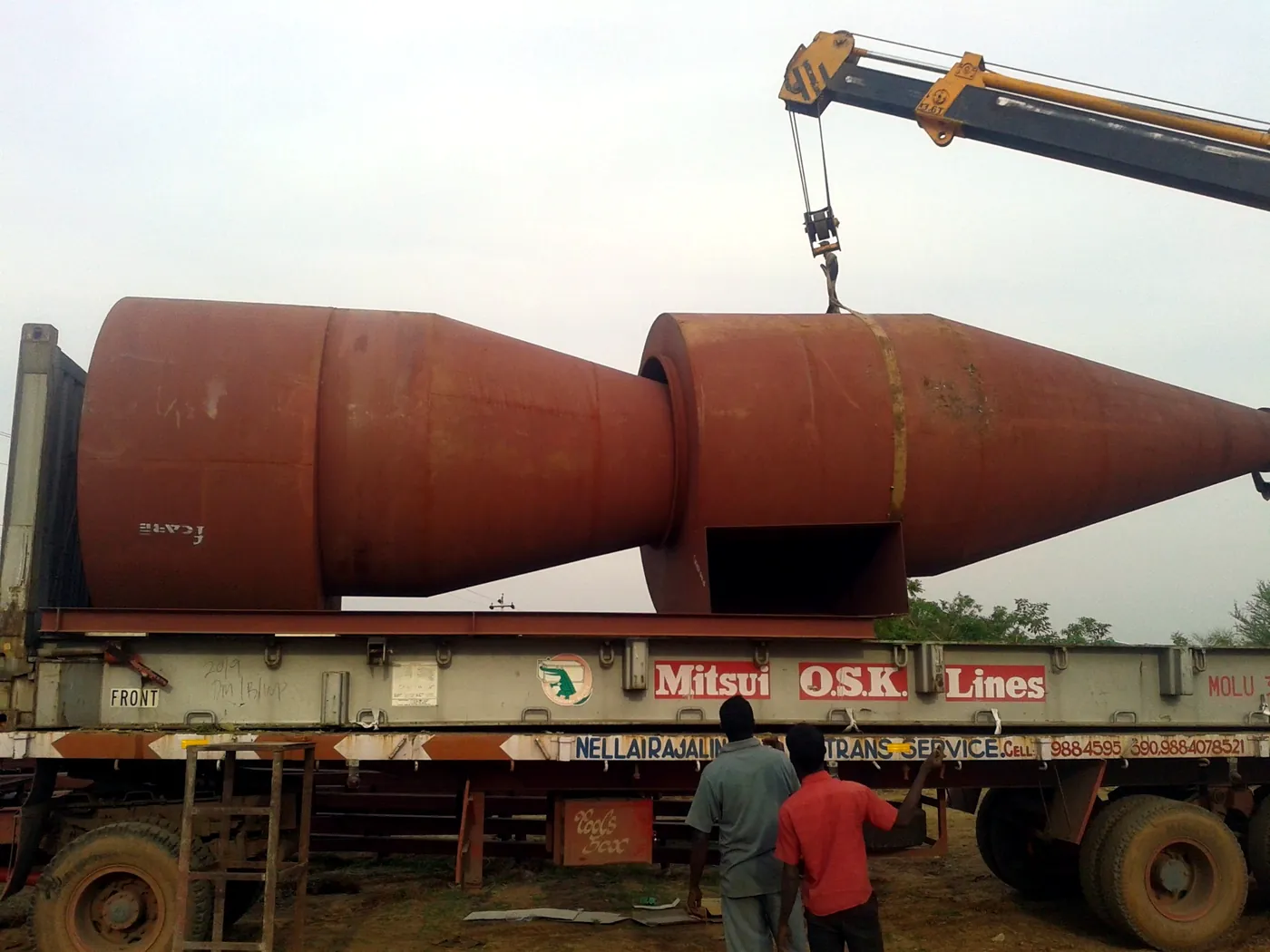

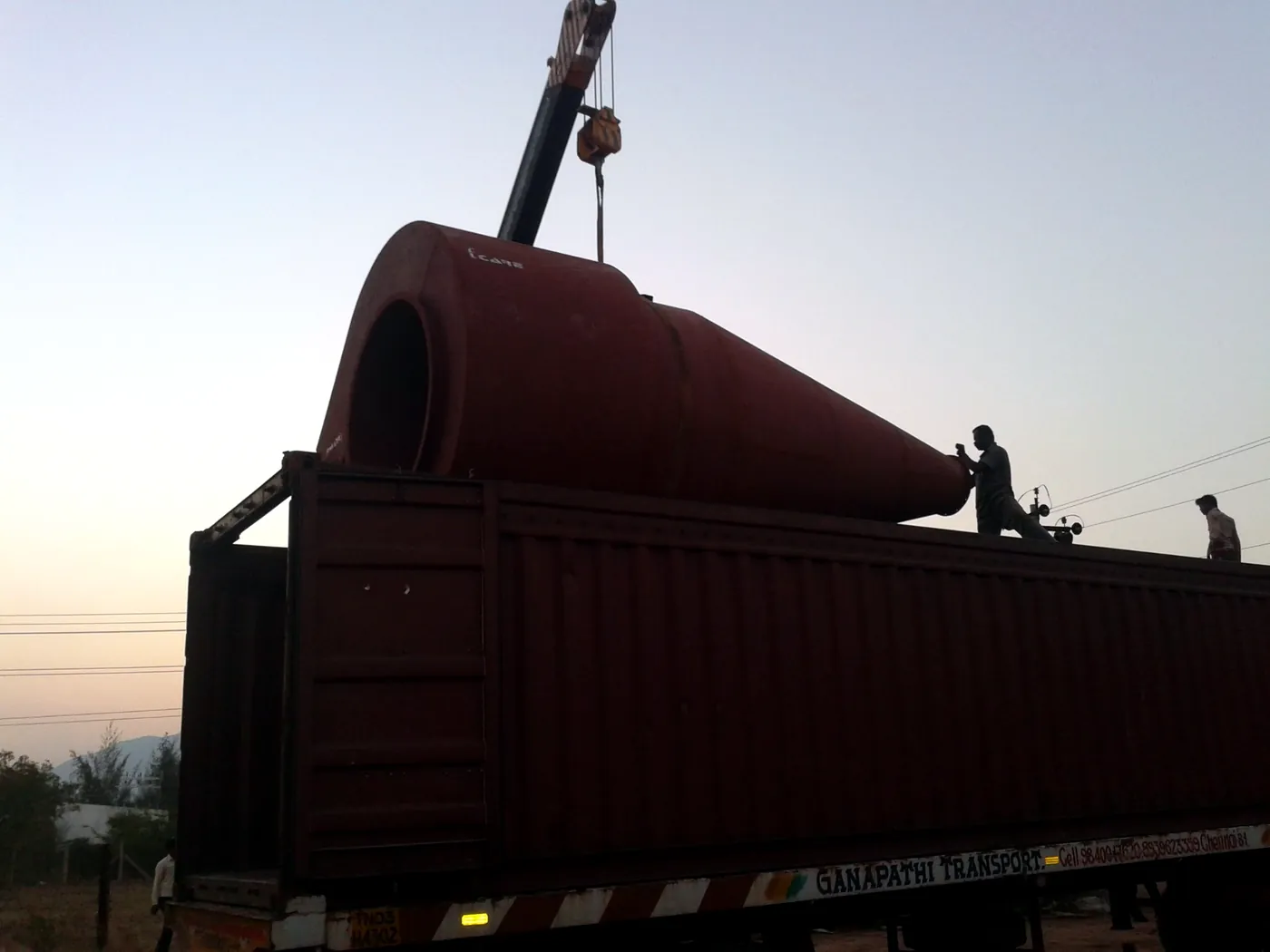

Fabricated tapered duct section being loaded for transport.
Project route
02
Site erection · Port Elizabeth
Complete system erection in South Africa
Branch ducting, structural supports, hopper and dust-collection equipment were erected on site.

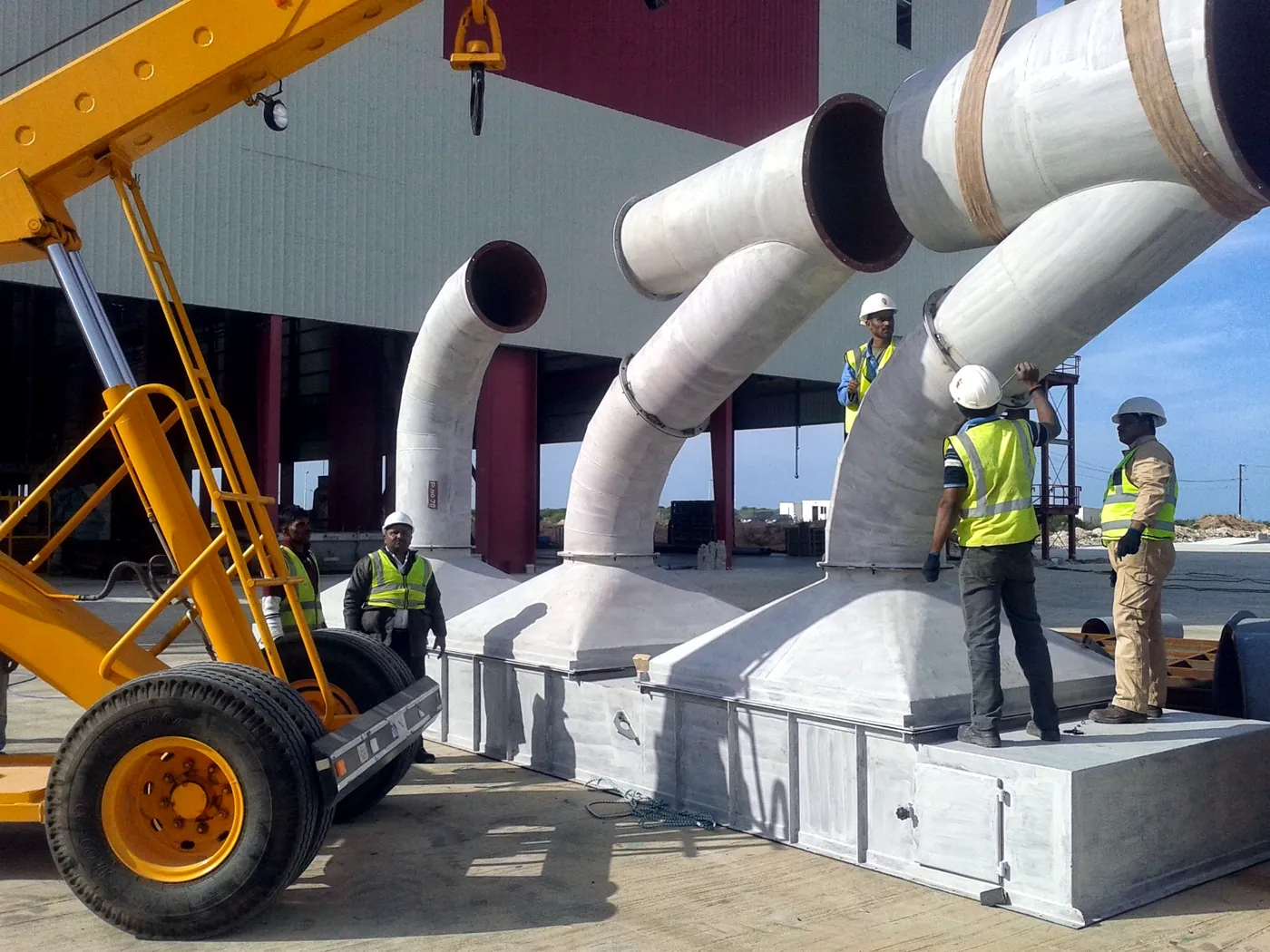

Fume-extraction branch ductwork being positioned during site erection in Port Elizabeth.

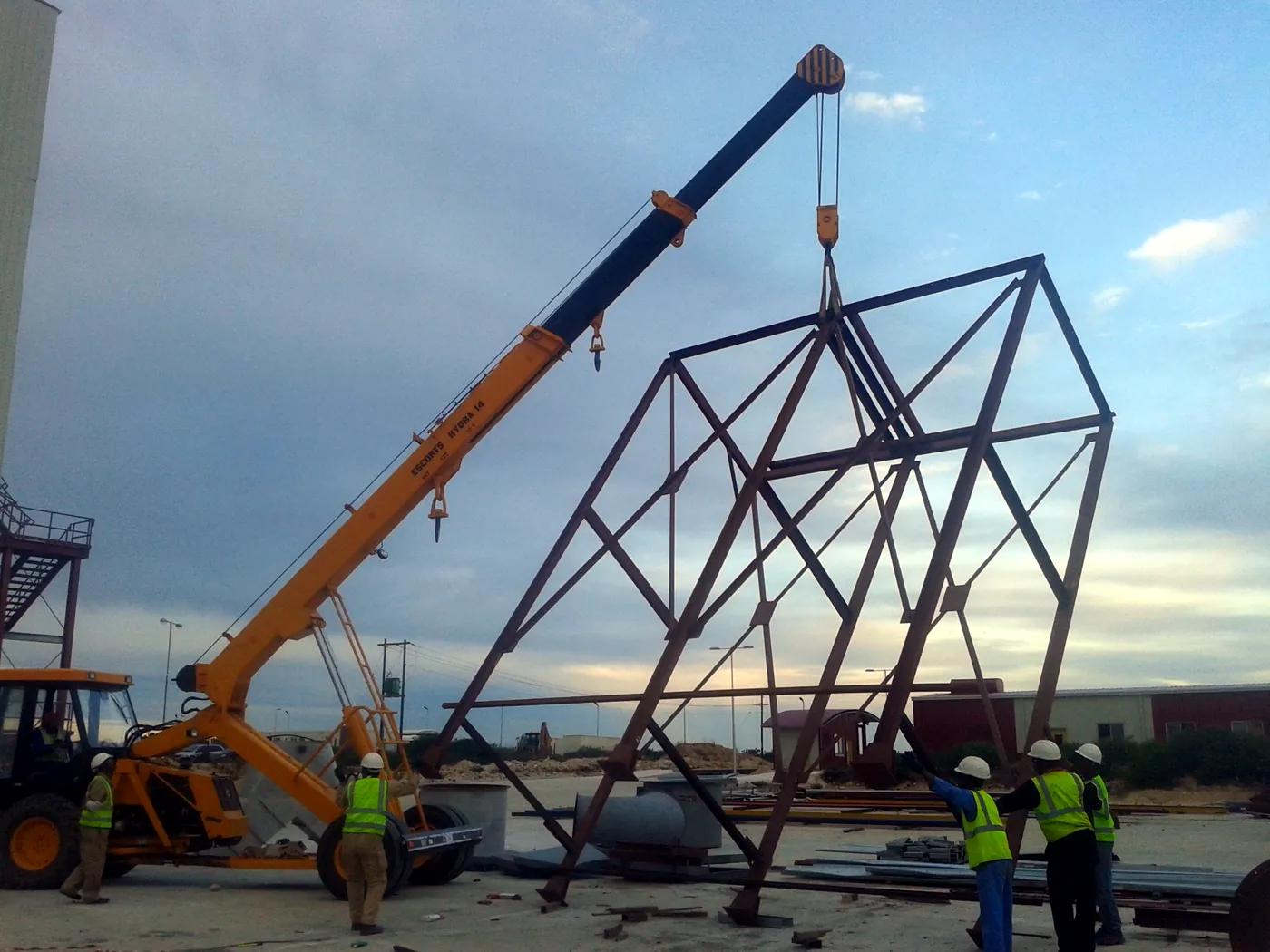

Structural support frame being lifted into position during erection.

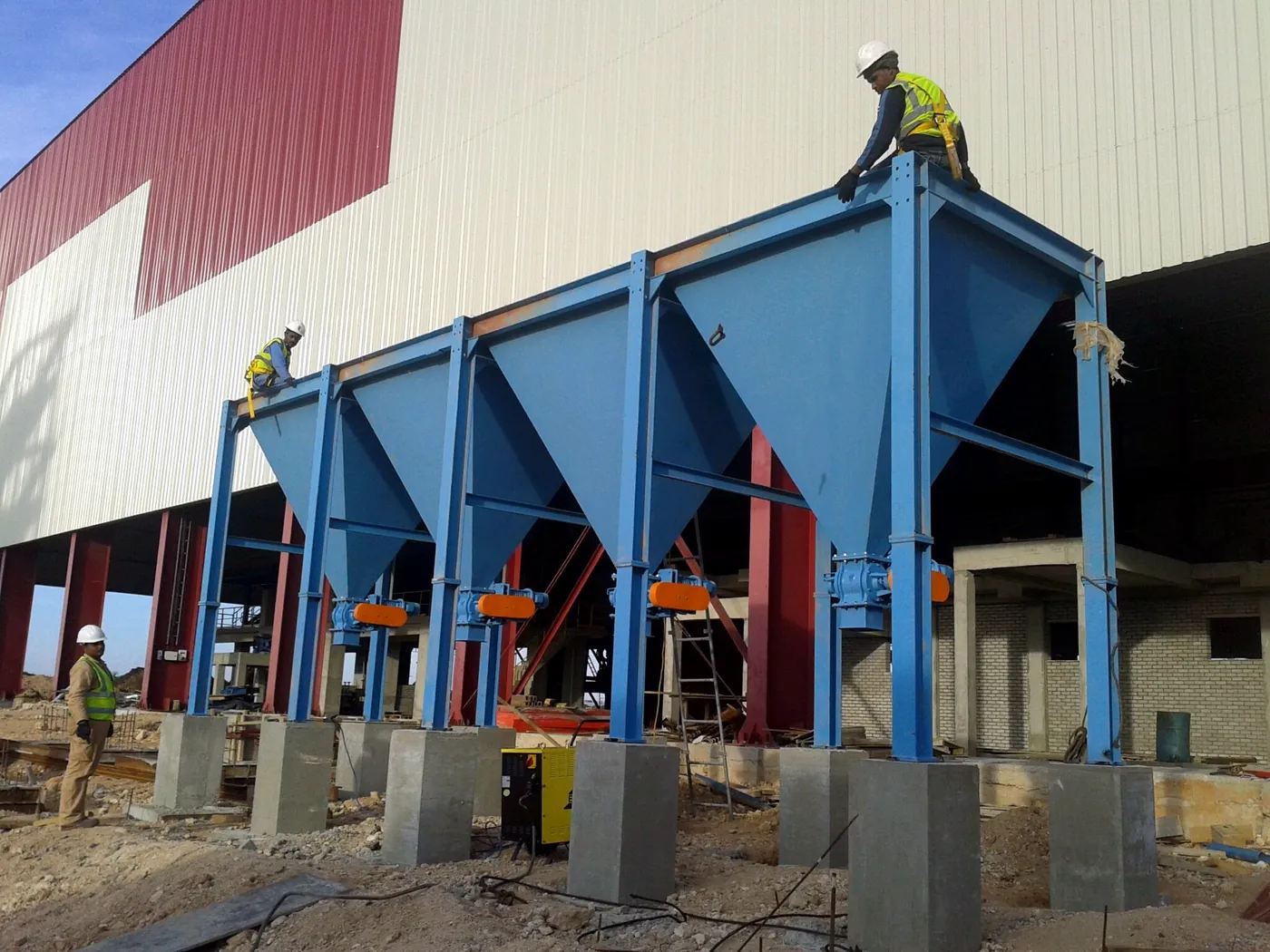

Installed hopper and dust-collection equipment during site construction.

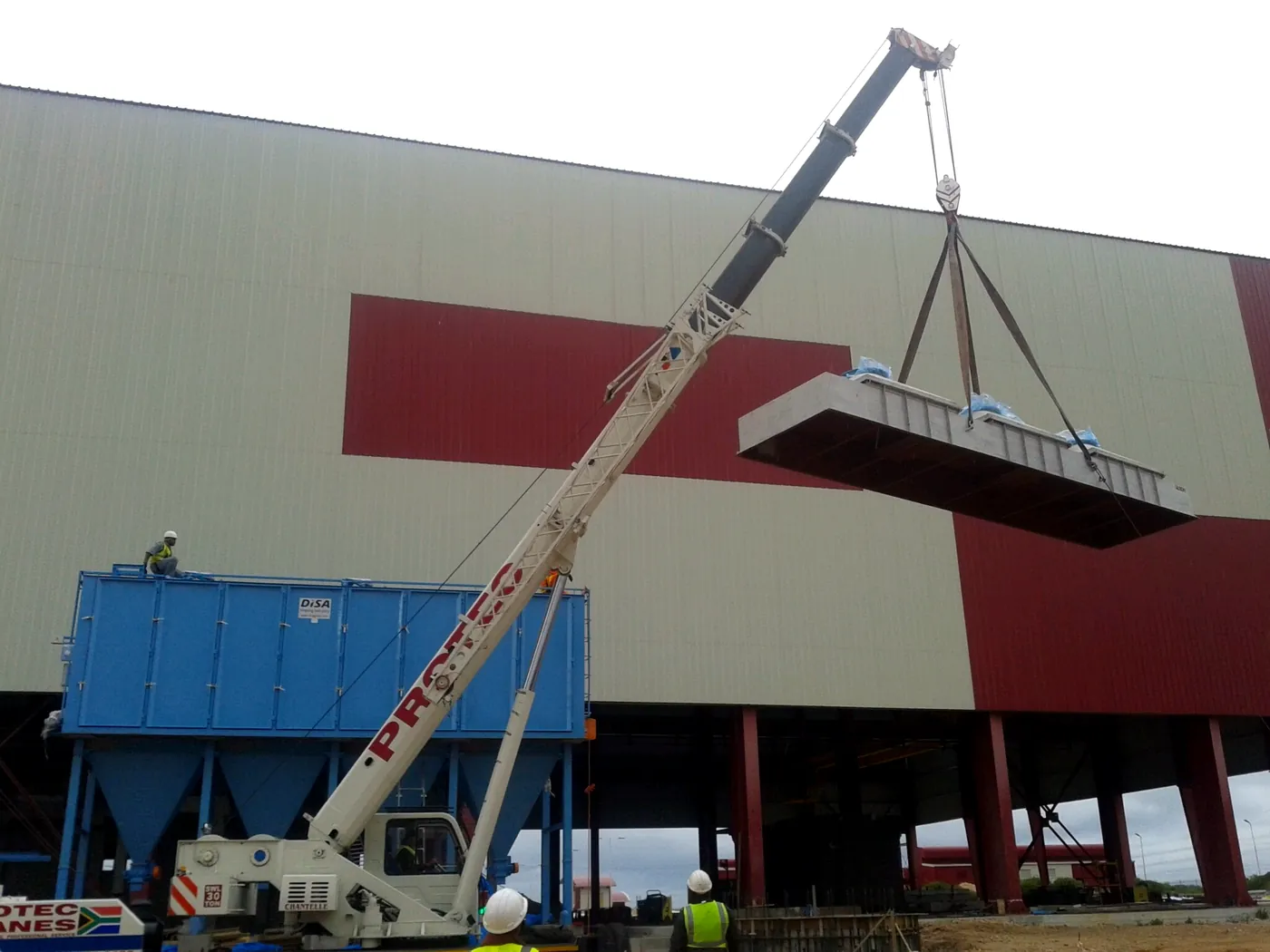

Large fabricated section being lifted at the Port Elizabeth site.
Project scale
Fabrication tonnage
Coimbatore, India
Complete erection tonnage
Port Elizabeth, South Africa
03
Final erection
Extraction system installation
Final-stage work included major branch duct assembly, extraction stack erection and elevated access works.

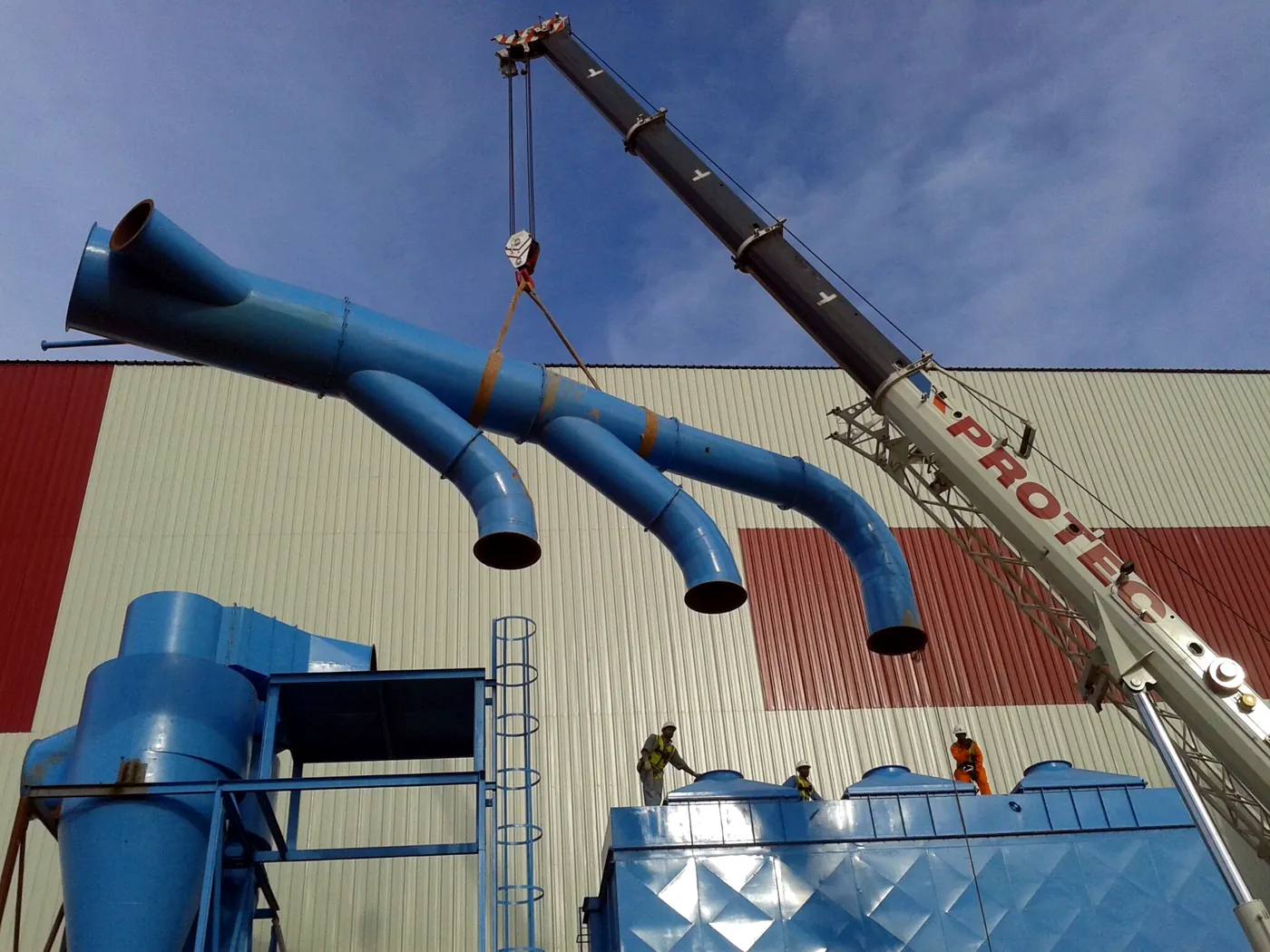

Large branch duct assembly being lifted into position.

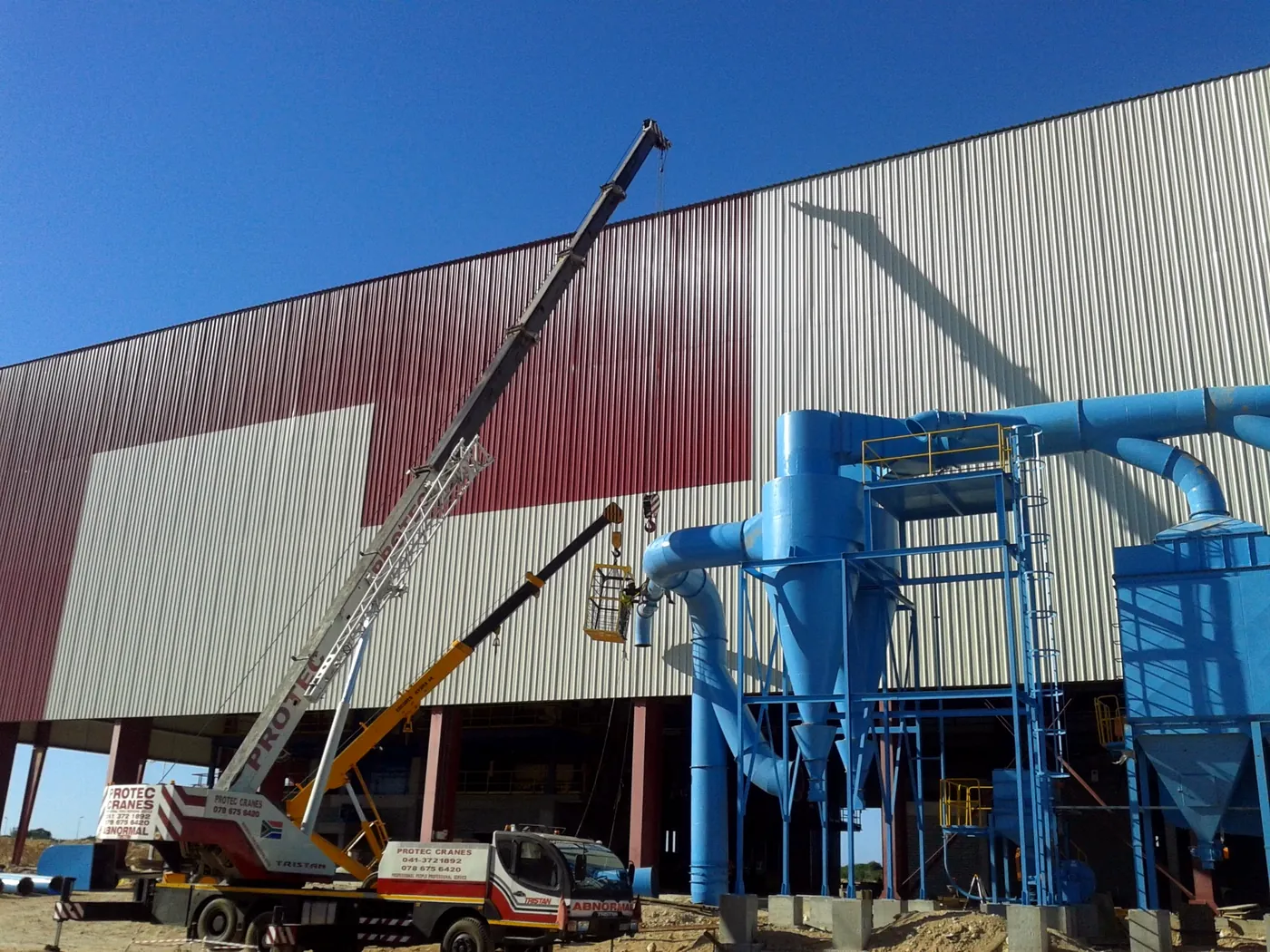

Erection work around the vertical extraction stack and connected equipment.

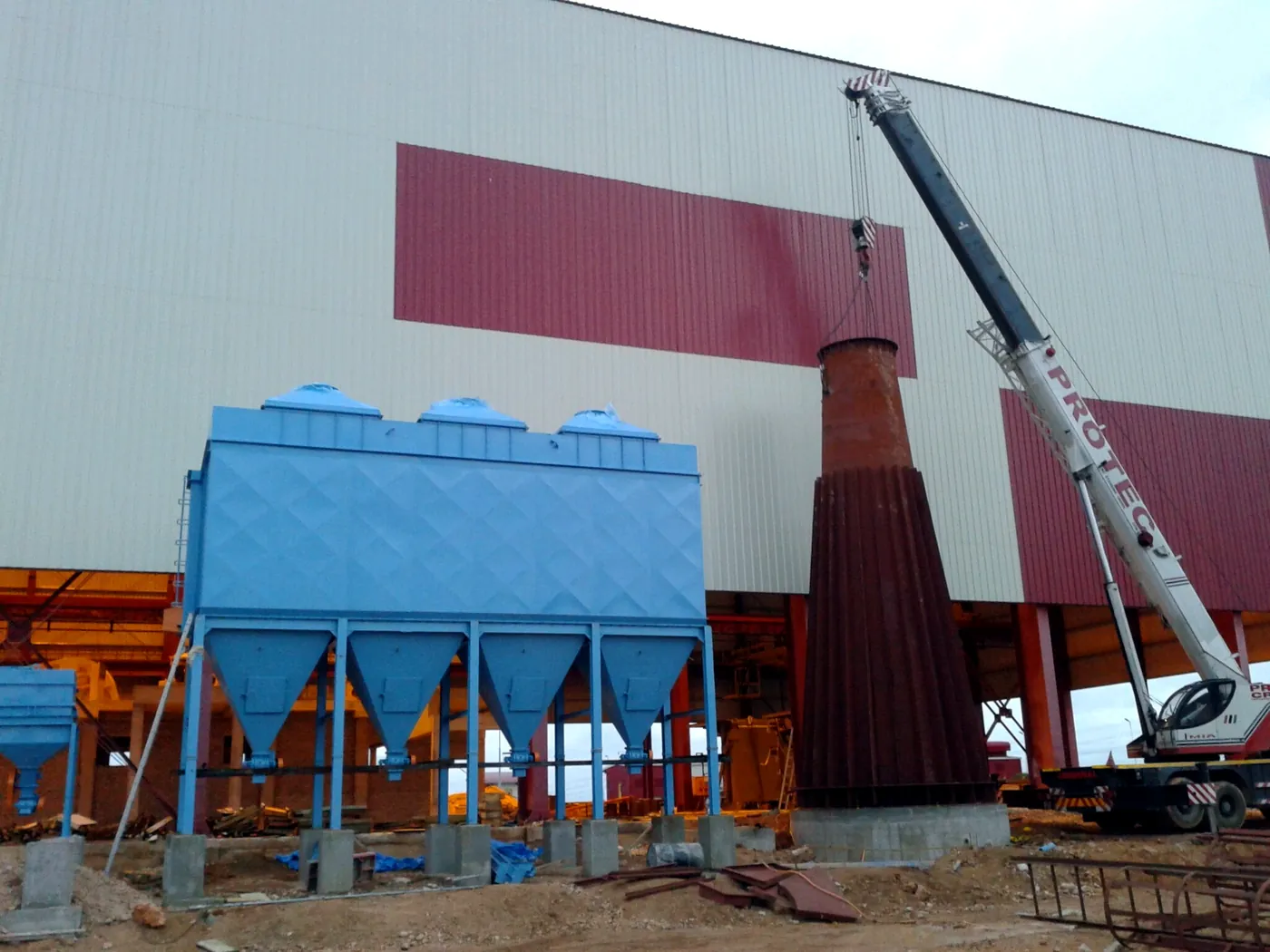

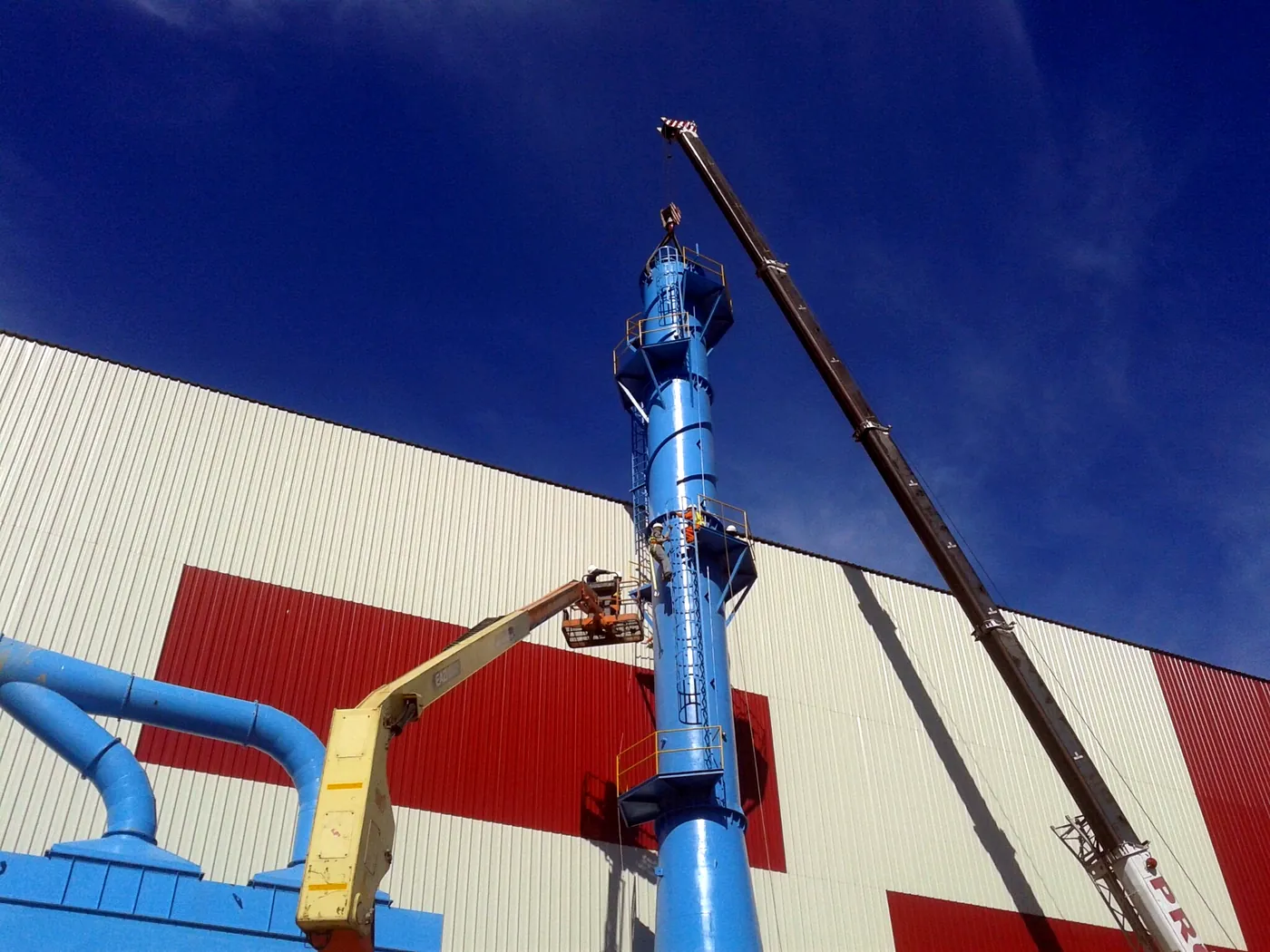

Site erection of the extraction stack with crane and elevated work platform.

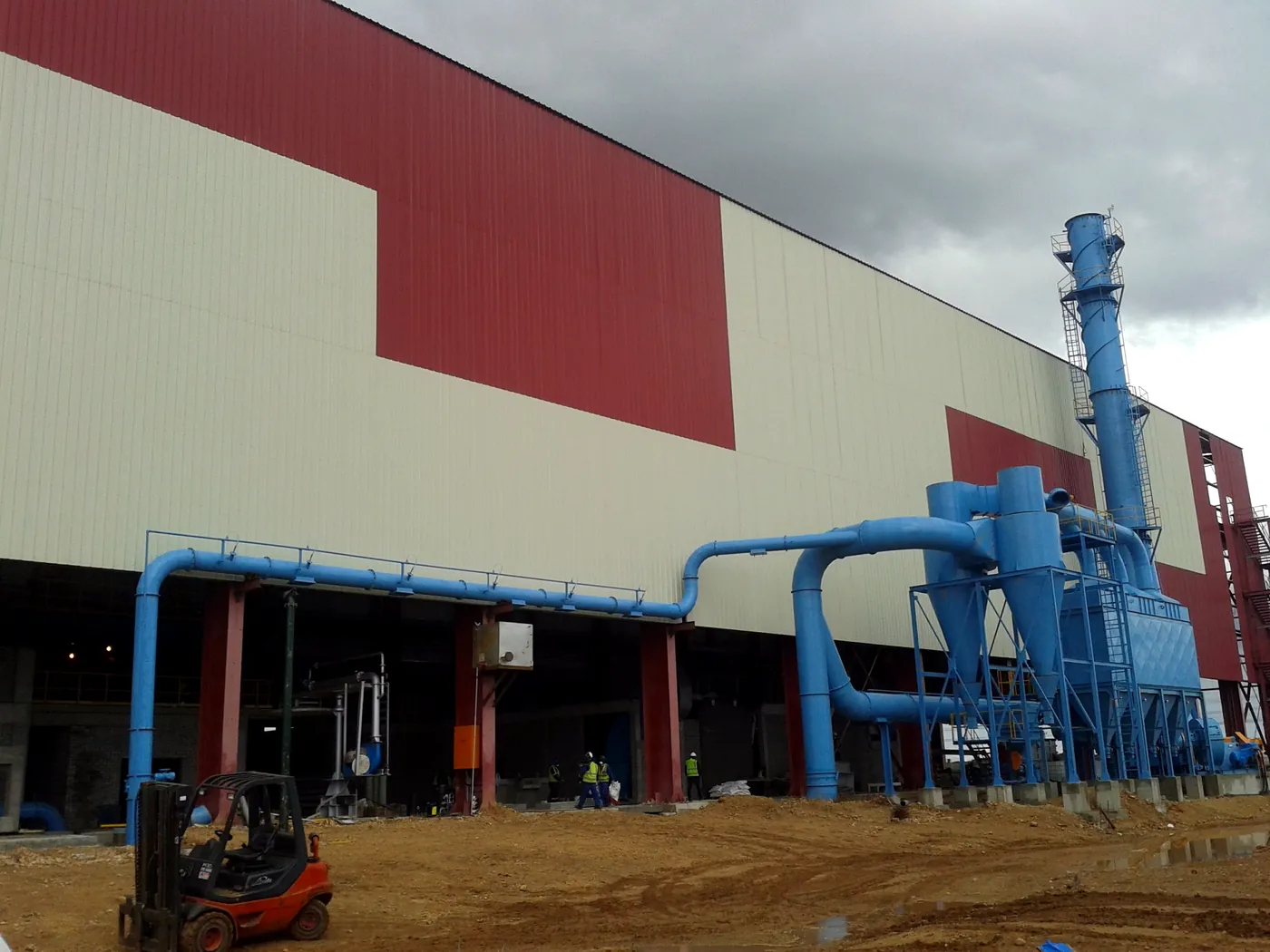

Final erection view of the extraction stack and connected system.
Coimbatore, India → Port Elizabeth, South Africa
